Caterpillar Engine Tools Cat Overhaul 3512 Page 243

Operation and Maintenance Manual
2595104
2595123
3-243
Engine Tools
Fuel System Repair and Adjust
Fuel System Repair and Adjust

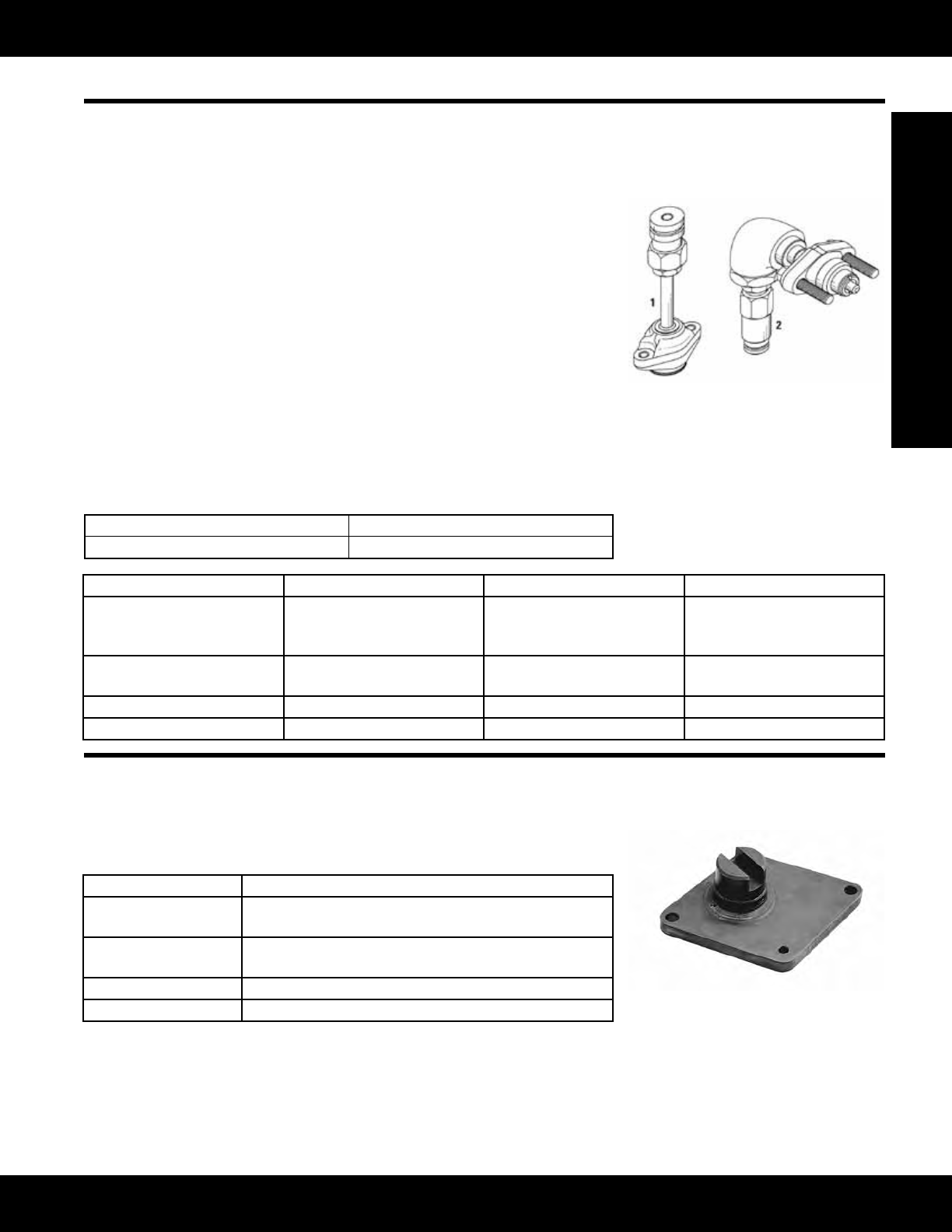

Connector Assemblies
Essential Tool
Model: C175-16 Engine - S/N WYB1-UP
Warranty: Six Months
• UsedtobackushcommonrailfuelsystemonC175Engines
• Usedwith295-5490FilterCart,170-8500ParticleAnalyzer,andvariouscap/plugs
(part of 276-7018 Cap and Plug Kit)
• ProvidesamethodofushingfuelsystemsonC175engineswithoutremoving
fuel system components
Reference
SEBF9107,ReuseandSalvageGuideline,ProcedureforBackFlushingtheCommon
Rail Fuel System of C175 Engines
SEBF9109,ReuseandSalvageGuideline,HandlingProceduresfortheComponentsof
the Common Rail Fuel System for C175 Engines
PEBJ0002, Caterpillar Dealer Contamination Control Guidelines
PEBJ9180, Contamination Control Guideline, Diesel Fuel Cleanliness By Particle
Analyzer
RENR7466, Disassembly and Assembly, C175-16 Generator Set Engine
RENR9338, Systems Operation, Testing and Adjusting, C175-16 Generator Set Engine
RENR9339, Troubleshooting, C175-16 Generator Set Engine
NEHS0799, 170-8500 Analyzer Group Tool Operating Manual
Includes:
FT1979 Forcing Screw Assembly
Item Part Number Description Use
1 330-7185 Connector Assembly installed in place of high pres-
sure fuel line on number two
cylinder
2 334-4442 Connector Assembly installed in place of high pres-
sure fuel line at pump outlet
-- 301-1501 Air-In Fuel Test Kit --
-- 304-3107 Pressure Adapter --
Timing Fixture Plates
Model: Cat
®
Engines
Warranty: Six Months
• Usedtotimeaccessorydriveshafttoenginewithfuelpumphousingandgover-
norremoved
Part Number Engine
8S-5417 4.75inBore,4-and6-Cylinder2-valveengines(scroll
pumps)
8S-4625 951BTraxcavatorwith4.5inBoreengineandhydraulic
governor
5P-0143 3204 Engine
5P-4240 D8K Engine (14 degree 17 in timing)
