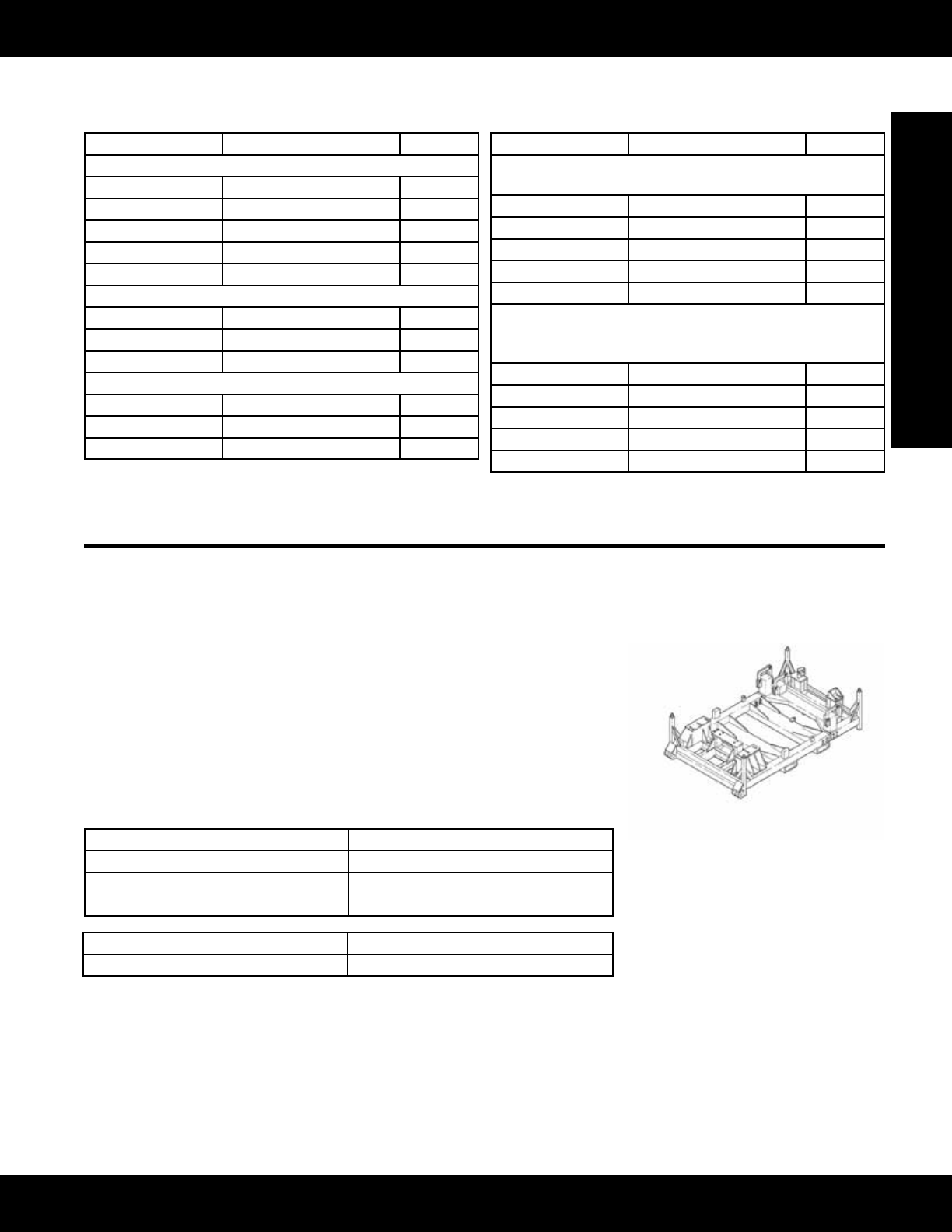

Caterpillar Engine Tools Cat Overhaul 3512 Page 373

Operation and Maintenance Manual
2600086
2600136
3-373
Engine Tools
Engine Lifting and Positioning
Motor Grader Rear Engine Support Groups (Continued)
Model: All G-Series Motor Grader Engines
Warranty: Six Months
Part Number Description Qty.
Engine Support Group A
1
4N-7862 Support Assembly, Right 1
1D-5118 Jam Nut 2
8H-6508 Forcing Bolt 2
0S-1595 Bolt 8
4B-4280 Washer 8
Engine Support Group B
2
1D-5118 Jam Nut 2
8H-6508 Forcing Bolt 2
7B-3235 Bolt (English) 4
Engine Support Group C
3
1D-5118 Jam Nut 2
8H-6508 Forcing Bolt 2
0S-1595 Bolt 8
Part Number Description Qty.
Engine Support Group D (Use 3 washers between support as-
sembly and ywheel housing at each 7K-4370 bolt)
2P-8913 Support Assembly 2
1D-5118 Jam Nut 2
8H-6508 Forcing Bolt 2
7K-4370 Bolt 4
4B-5275 Washer 12
Engine Support Group E (Use shims as required between
support assembly and ywheel housing at both support loca-
tions)
4N-7358 Support Assembly 2
1D-5119 Jam Nut 2
4B-6208 Forcing Bolt 8
8S-9092 Bolt 4
4N-6063 Shim 12
1
Includes: Support Assembly, Left, Qty. 1
2
Includes: Support Assembly, Qty. 2
3
Included: Support Assembly, Qty. 2
326-5851 Adjustable Engine Stand
Essential Tool
Model: C175 Engine
Warranty: Six Months
• UsedtosupportC175-16,C175-20,and797Off-HighwayTruckretro-tengines
for storage, shipping, and reconditioning
• Used with 323-1146 Lifting Group — attaches to engine stand mounting brackets
(forliftingandmovingstandwithengineinstalled)
• Hasbuilt-inlifttruckpocketsformovingemptystandonly(nottobeusedto
movestandwhileengineisinstalled)
• Steel wheels on one end of stand allows engines to be loaded/unloaded from
shipping containers
• StandsegmentsunboltandexpandtotlargerC175-20engine
• Stackable design allows empty stands to be stored in less space
Length (closed) 3831mm (150.8 in)
Width 2299 mm (90.5 in)
Height 1073 mm (42.2 in)
Weight 2196 kg (4842.0 lb)
Part Number Description
326-5851 Adjustable Engine Stand
