Caterpillar Engine Tools Cat Overhaul 3512 Page 195

Operation and Maintenance Manual

Page of 420

/ 420

2828303

2828361

3-195

Engine Tools

Engine Test Tools

356-8752 G3600 Operator Tool Group (Continued)

Model Usage: G3606 (3XF), G3608 (4WF), G3612 (1YG), G3616 (4CG)

Warranty: Six Months

• Aids in gathering oil samples

Media Number Description

NEHS0680 Data Sheet Pad

Part Number Description

356-8752 Operator Tool Group

356-8752 G3600 Operator Tool Group

1U-9824 Tool Group

245-5829 Coolant Test Kit

4C-4601 Spark Plug Socket

6V-9124 Screwdriver

7X-3387 S·O·SSamplingValve

8C-3445 Dust Cap (Engine)

8F-9866 Cat

Pro “L” Grease Gun

9U-7511 Spark Plug Seat Cleaner

9U-7516 Spark Plug Gauge

Warranty: Six Months

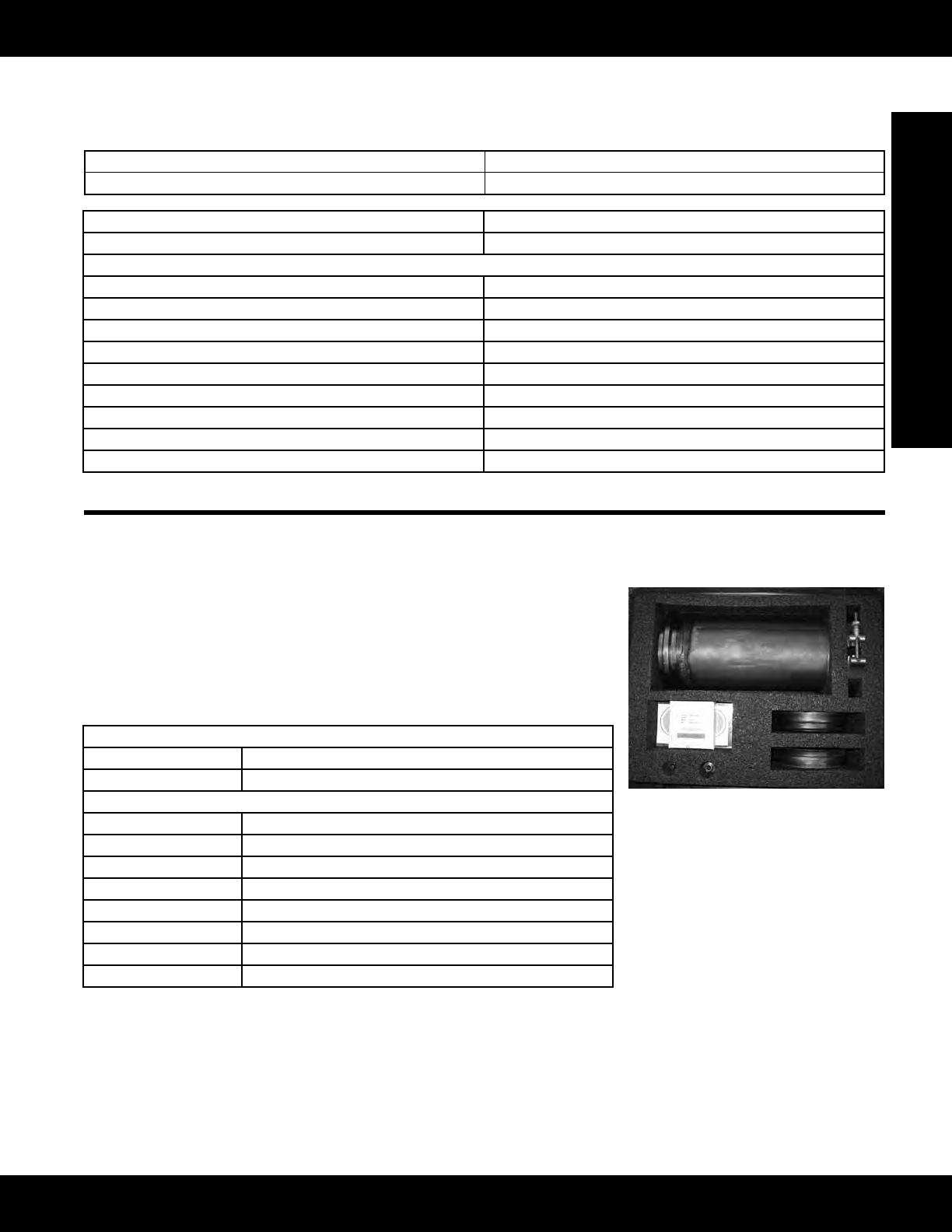

360-9664 Diesel Particulate Filter (DPF) Crack Detection Kit

Model Usage: C13: S/N LEE1-UP, C15: S/N SDP1-UP, B5R1-UP

Warranty: Six Months

• For On-Highway Truck Engines equipped with DPFs (2007 and newer), not for

Tier 4 machines

• UsedtodeterminewhetheraDPFisdefective

• Utilized while DPF is still on the engine to take an exhaust sample

• UseslterpaperelementstodetermineamountofsootleakingthroughDPF

Reference

REHS5017, Special Instructions

360-9664 DPF Crack Detection Kit

Part Number Description

360-9664 Diesel Particulate Filter (DPF) Crack Detection Kit

360-9664 DPF Crack Detection Kit

001-6449 Connector - Flared

360-9665 Box - Filter

360-9666 Orice-Short

360-9667 OriceAssembly-Long

360-9668 Cap

360-9669 Foam Assembly

360-9670 Card Comparator

3L-7055 Connector - Pipe
