3-172

Engine Tools

Electrical and Ignition Tools

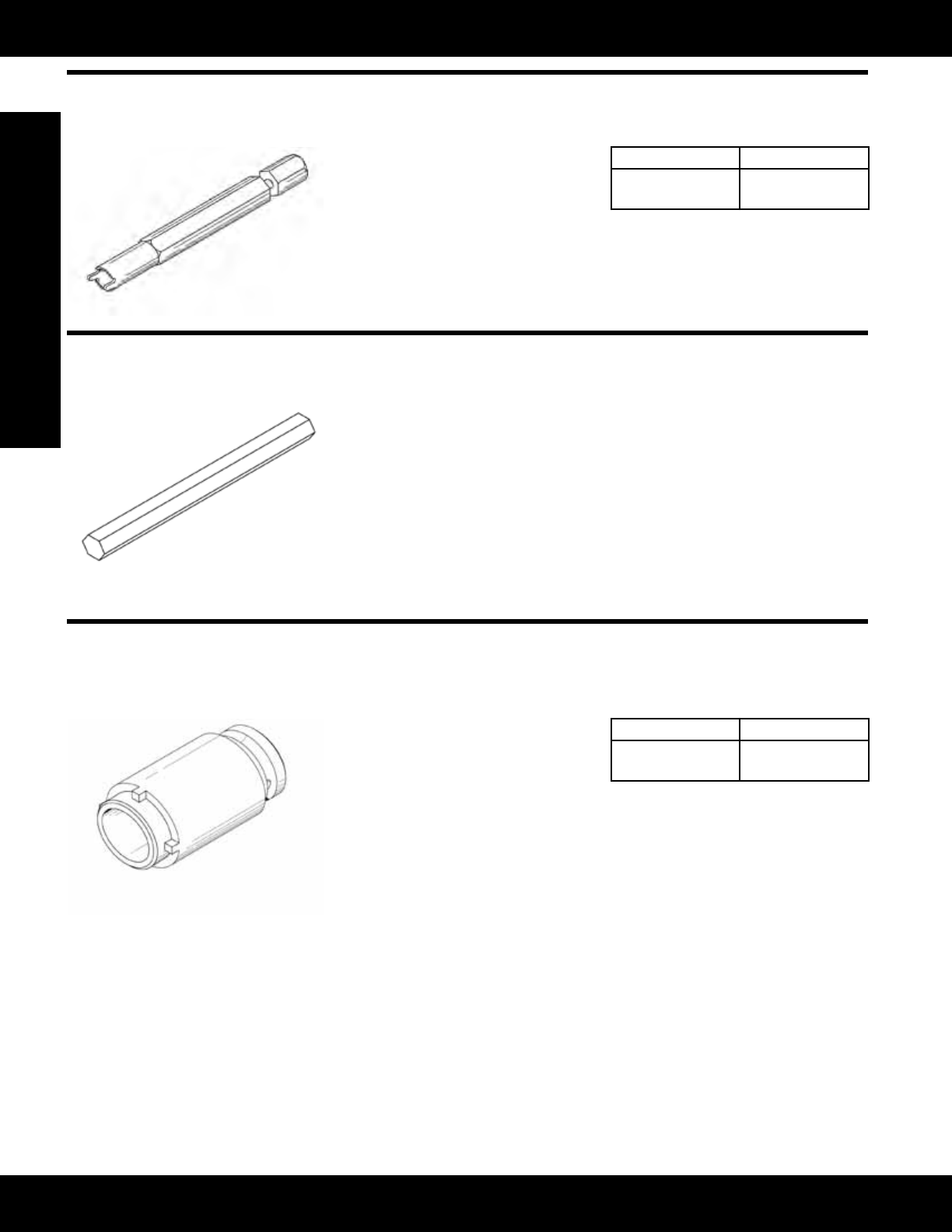

132-8263 Terminal Spanner Wrench

Model: All G3500 and G3600 EIS Engines

Warranty: Six Months

• Usedtoinstallandremove127-8893

Terminal Assembly

• Required to allow proper torquing of

terminal assembly (2.70 ± 0.25 N·m,

24.0 ± 2.2 in-lb)

• Accurate torque is essential to

avoiddamagetoterminalcom-

ponents;necked-downdiameter

minimizeschanceofover-torque

Part Number Description

132-8263 Terminal Spanner

Wrench

FT1780 Removal and Installation Tool

Model: 3400 Series Spark Ignited Engines

Warranty: None

• Neededtoremoveandinstall213-7539SparkPlugAdapterAssemblies

• Fabricatedfrom28.6mm(1.125in)hexagonalsteelrodwithsufcientlengthto

reach adapters

• Minimum yield strength of steel: 689,500 kPa (100,000 psi)

235-9751 Spark Plug Driver Adapter Assembly

Essential Tool

Model: G3500C Engines

Warranty: Six Months

• Usedtoremoveandinstall225-0902

Adapter (spark plug)

• Used with 19.05 mm (3/4 in) ratchet

• Built-in pilot for easy engagement

Part Number Description

235-9751 SparkPlugDriver

Adapter Assembly
