Caterpillar Engine Tools Cat Overhaul 3512 Page 166

Operation and Maintenance Manual
2828228
2592966
2592984
3-166
Engine Tools
Cylinder Head, Valves and Cam Followers

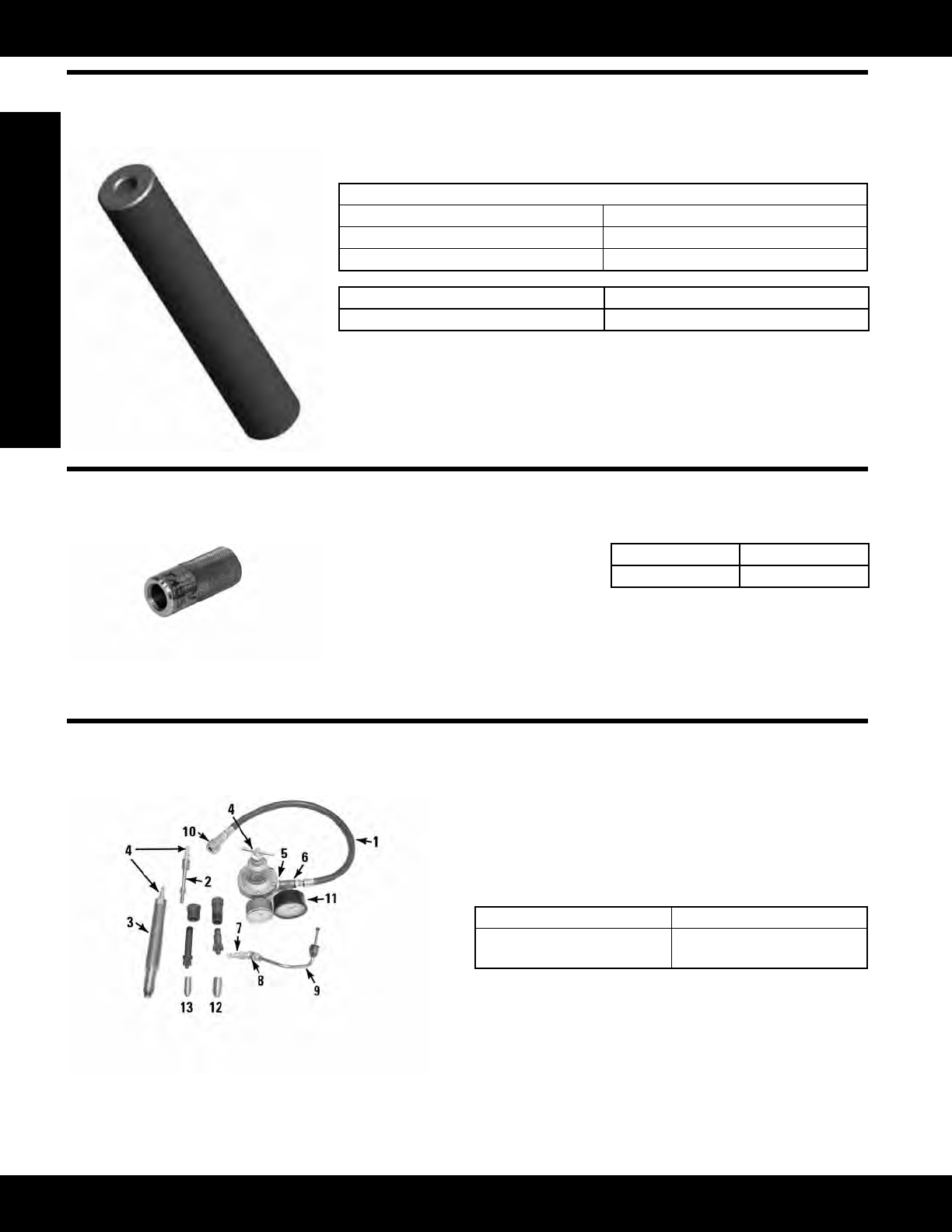

375-2773 Installation Tool
ModelUsage:C13&C15Engines
Warranty: Six Months
• Usedtoinstallvalvesealusinghandpressure
• Preventsdamagetovalvesealduringinstallation
Specications
Dimensions 150 x 26.8 mm (5.90 x 1.05 in)
Weight .54 kg (1.20 lbs)
Material Steel
Part Number Description
375-2773 Installation Tool
4C-6373 Valve Seal Installer
Model: 3046 Diesel Engine
Warranty: Six Months
• Usedtoinstallvalveseal—easily
installed using hand force
• Preventsdamagetovalvesealdur-
inginstallation—savestimeand
reduces cost
• Knurled for ease of handling
Reference
SENR6458, Special Instruction, Disas-
sembly and Assembly of 3046 Engine
Part Number Description
4C-6373 ValveSealInstaller
Cylinder Condition Analysis Tools
Model: All Models
Warranty: Six Months
• Used to analyze cylinder condition on any Cat
®
engine
• Pressurizedairisintroducedintocylinder;amountof
pressuredropisindicatorofpistonringandvalvecondi-
tion
Reference
GMG00694, Special Instruction
Item Description
4 Norgren Regulator Model
#11-002-049
(Continued)
