Caterpillar Engine Tools Cat Overhaul 3512 Page 287

Operation and Maintenance Manual
2597047
2597061
3-287
Engine Tools
Fuel System Repair and Adjust

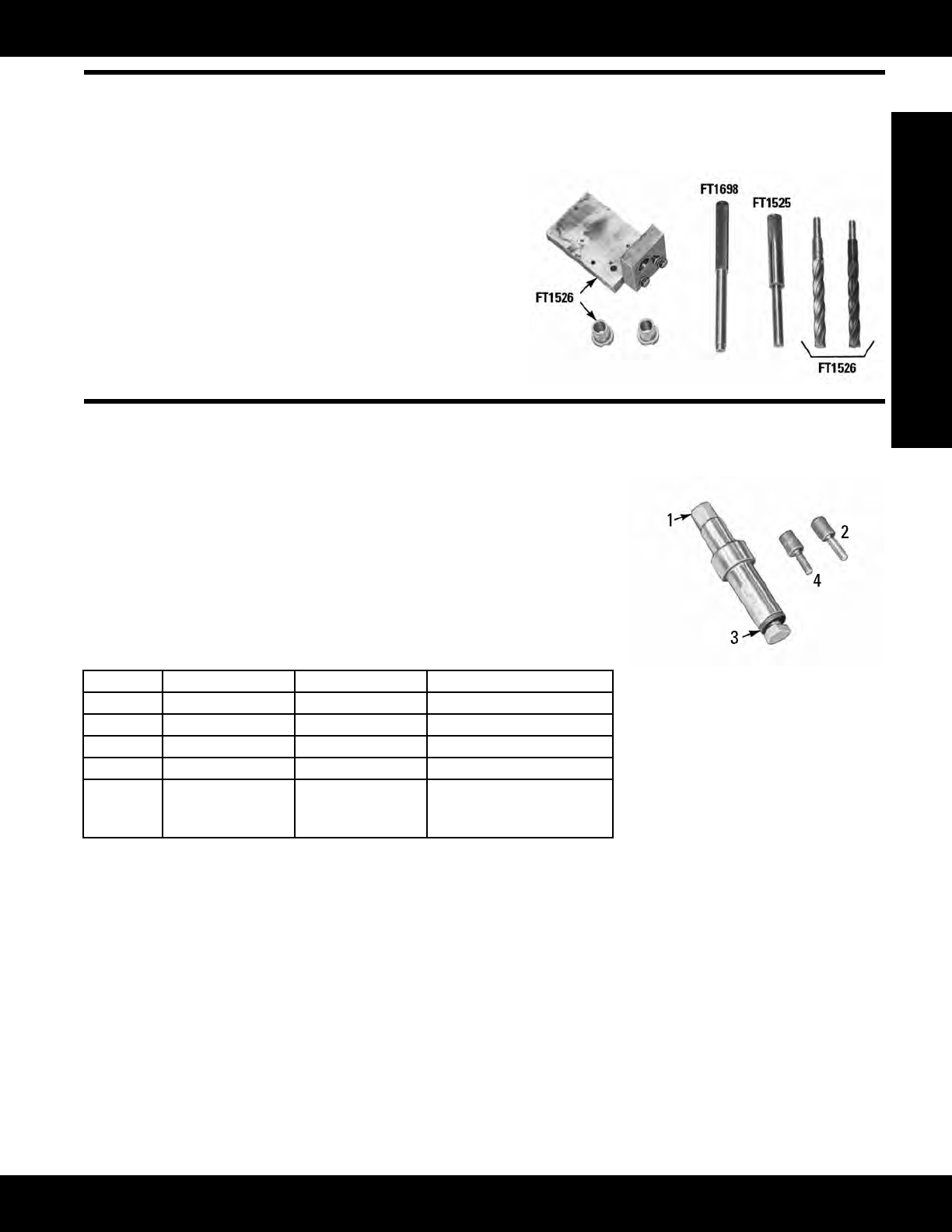

FT1525 Alignment Pin, FT1526 Fixture
FT1698 Driver
Model: 3208
Warranty: None
• Usedtosalvagegovernorhousingson3208Engineswith
SleeveMeteringFuelSystems
• Provideaccuratemethodformaintainingproperlocation
whenreworkingthrottleshaftbushingbores;FT1525Pin
and FT1526 Fixture formerly used to rework only outer
bore;withadditionofFT1698Driverandalongerdrilland
reamer, both bores can be reworked
Reference
SMHS7760-01, Special Instruction
6V-4141 Sleeve Metering Calibration Tool Group
Model: 3208
Warranty: Six Months
• MakesadjustmentofsleeveleverseasieronSleeveMeteringFuelSystems
• Whenusedwith6V-4980TorqueScrewdriverToolGroup,adjustmenttosleeve
leverson3208Enginetakesabout5minutesinsteadof15to30minutes
• Formerly,tolerancesonsleeveleverhadtobeexactto0.002mm(0.00008in);
it was necessary to use 3P-2220 Calibration Tool Group to make an adjustment
thisexact;toleranceswerechangedto0.05mm(0.002in)withamaximumof
0.05mm(0.002in)betweeneachlever,and6V-4141ToolGroupcanmakethis
adjustment accurately and faster
Reference
SMHS7835, Special Instructions
Item Part Number Description Size
1 6V-4137 Fixture Group --
2 3P-1545 Pin 17.3734 mm (0.68 in)
3 8T-0888 Washer --
4 3P-1546 Pin 15.9410 mm (0.62 in)
-- 6V-4141 SleeveMetering
Calibration Tool
Group
--
