Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 47

OPERATORS MANUAL
TM 5-3805-261-10
DESCRIPTION AND USE OF OPERATOR CONTROLS AND INDICATORS - CONTINUED 0004 00
0004 00-11

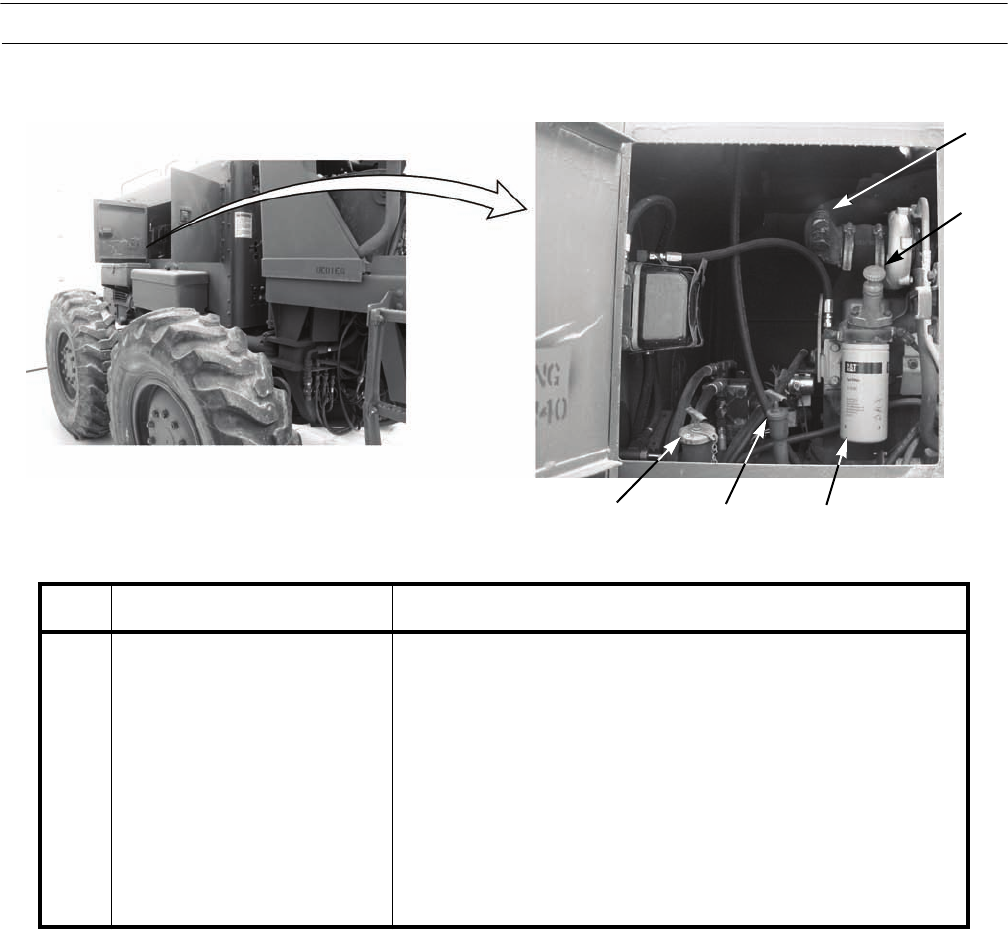

ENGINE COMPARTMENT - CONTINUED
KEY CONTROL OR INDICATOR FUNCTION
59 Engine Air Filter Service
Indicator
Indicates air cleaner air flow is adequate if indicator is yellow or green.
If indicator is red, service air cleaner. Press button on bottom to reset
after servicing.
60 Fuel System Priming Pump Helps remove air trapped in the fuel system. Primarily used after fuel
filter replacement.
61 Fuel Filter Removes debris from fuel system before entering engine.
62 Transmission Oil Dipstick Indicates level of oil in transmission. Level should be between ADD
and FULL ENGINE IDLING lines on dipstick.
63 Transmission Oil Fill Cap Remove cap to add transmission oil to the transmission.
59
60
62
63
61
397-939
