Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 162

OPERATORS MANUAL
TM 5-3805-261-10
PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-18

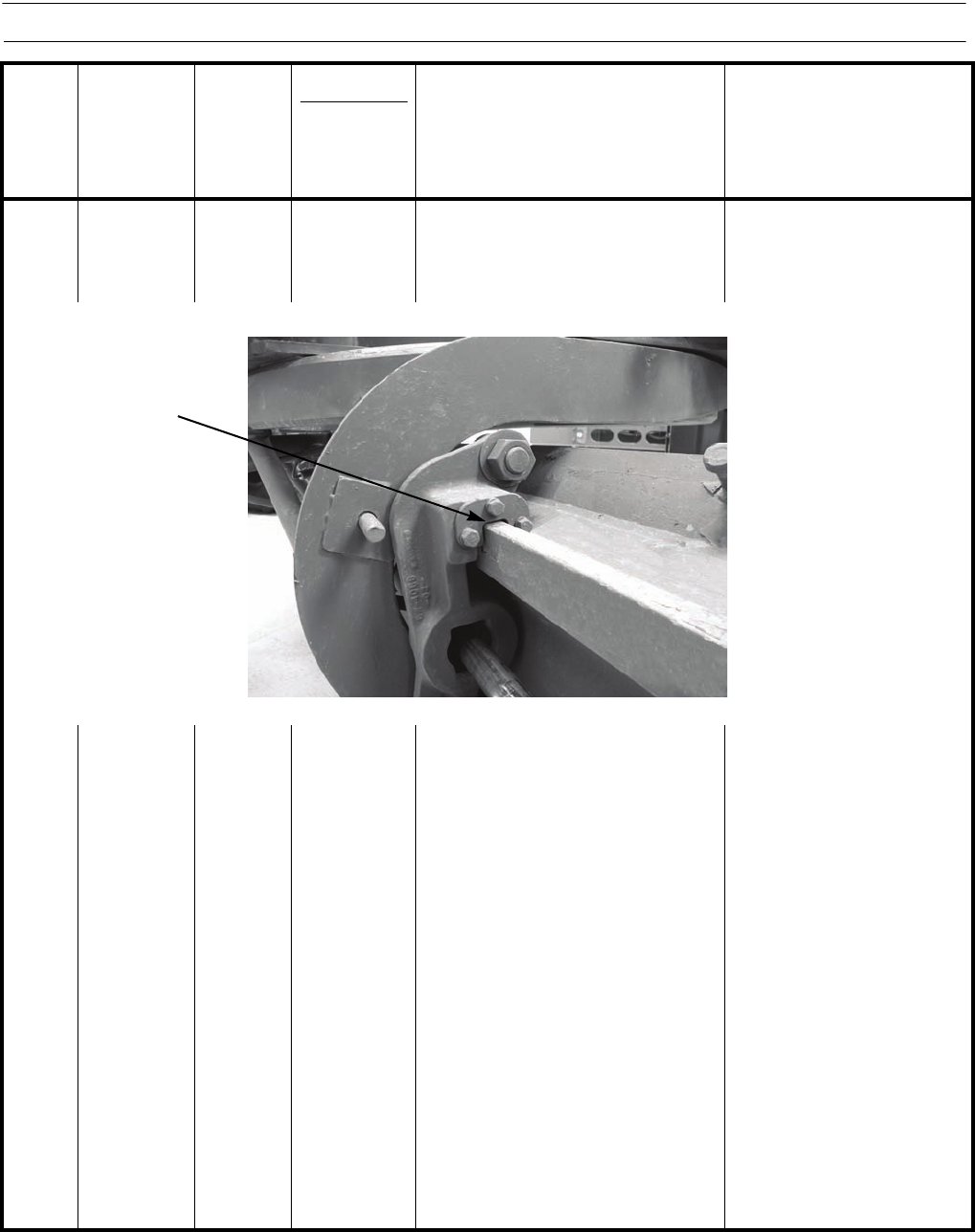

54 After Blade Slide
Bushings
Check the blade slide bushings on
both ends for excessive wear. The gap
between the blade bracket and blade
should be greater than 1/8 in.
Blade slide bushing has
excessive wear.
55 After Blade and
Cutting
Edges
a. Check the blade for damage or dis-
tortion.
Damage or distortion.
b. Check the cutting edges for dam-
age or loose bolts.
Damage or loose bolts.
c. Check the cutting edges for exces-
sive wear.
Cutting edge is worn to within
3/4 in. (19 mm) of blade.
d. Check sideshift cylinder for
debris, damage, or leaks. Remove
debris.
Class III leaks or damage that
would impair operation.
56 After Blade Work
Lights
Ensure the blade work lights are
present and securely mounted.
57 After Left Door
(if Equipped)
Check left door for damage or missing
components.
Missing or damaged compo-
nents if necessary for mission.
58 After Left Mirror
and Step
(if Equipped)
Check the left side mirror and step for
damage or missing components.
Missing or damaged compo-
nents if necessary for mission.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:
397-1049
SHOULD BE
MORE THAN 1/8 IN.
GAP (3.2 MM)
