Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 38

OPERATORS MANUAL
TM 5-3805-261-10
DESCRIPTION AND USE OF OPERATOR CONTROLS AND INDICATORS - CONTINUED 0004 00
0004 00-2
OPERATOR CONTROLS AND INDICATORS - CONTINUED

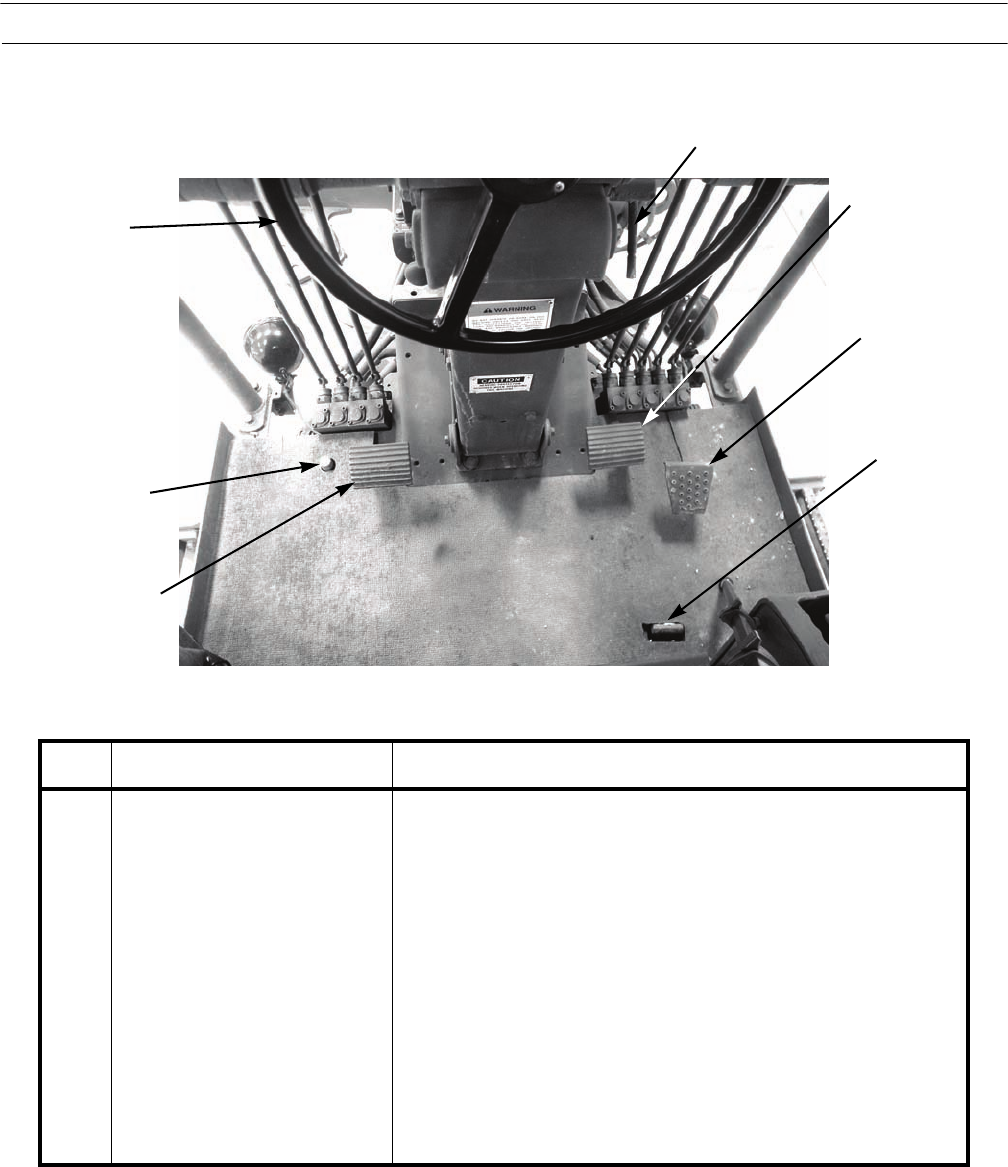

KEY CONTROL OR INDICATOR FUNCTION
8 Steering Wheel Tilt Lock Rotate counter-clockwise to loosen for adjustment. Rotate clockwise
to tighten.
9 Service Brake Pedal Press pedal to slow or stop machine.
10 Accelerator Pedal Press pedal to increase engine speed. Pull top of pedal to shut down
engine.
11 Decelerator Pedal Push down to decrease engine speed below governor setting.
12 Transmission Modulator Pedal Disengages power to wheels. Used to move slowly around obstacles.
13 Headlight Dimmer Switch Depress dimmer switch to change headlight beams from low to high
beam. Press switch again to return headlights beams to low beam.
14 Steering Wheel Controls machine direction of travel. Turn steering wheel clockwise
to turn right. Turn steering wheel counterclockwise to turn left.
8
9
10
11
12
13
14
397-935
