Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 42

OPERATORS MANUAL
TM 5-3805-261-10
DESCRIPTION AND USE OF OPERATOR CONTROLS AND INDICATORS - CONTINUED 0004 00
0004 00-6

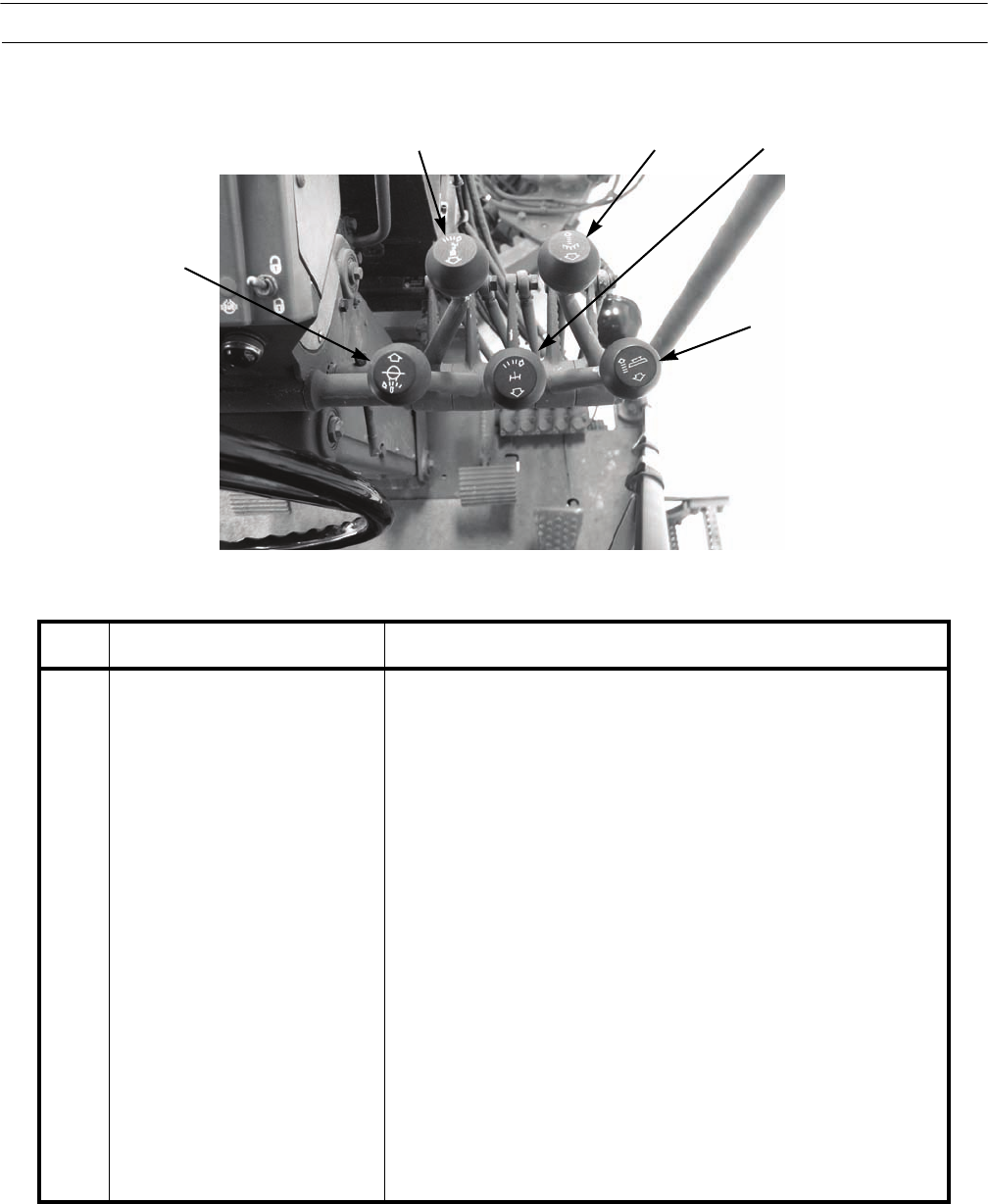

EARTH MOVING CONTROLS - CONTINUED
KEY CONTROL OR INDICATOR FUNCTION
35 Blade Centershift Control Blade centershift control has three positions:
Right: Pull lever back and the drawbar, blade and circle move right.
Hold: Center position holds the drawbar, blade and circle in set
position.
Left: Move lever forward and the drawbar, blade and circle move
left.
36 Articulation Control Articulation control has three positions:
Right: Pull lever backward and rear of machine articulates to
right.
Hold: Center position holds machine at current articulation
angle.
Left: Move lever forward and rear of machine articulates to left.
37 Scarifier Control Scarifier control has three positions:
Raise: Pull lever back to raise scarifier.
Hold: Center position holds scarifier in set position.
Lower: Move lever forward to lower scarifier to ground.
38 Wheel Lean Control Wheel lean control has three positions:
Right: Pull lever back and front wheels lean right.
Hold: Center position holds wheel lean in set position.
Left: Move lever forward and front wheels lean left.
39
38
37
36
35
397-931
