TH360B Telehandler Operation and Maintenance Manual Page 70

Operation and Maintenance Manual
68 31200243
Operation Section
machine in order to disengage the load from the work
tool.
Operate the boom smoothly in order to avoid
damaging or dislodging the load.
Do not move the machine while the boom is raised or
while the boom is extended. If it is necessary to
reposition the machine, lower and retract the boom first.
Before you lower the stabilizers or before you raise the
stabilizers, the boom must be fully retracted and the
boom must be lowered to the travel position.
The transmission neutralizer switch operates in
conjunction with the service brake. The switch must be
in the OFF position when you travel on the roadways.
Do not use the machine for lifting loads in tandem with
other machines. The combined load weight and force of
the other machine can exceed machine capacity. This
could cause the machine to turn over.
Ensure that the correct machine load capacity chart is
used for the work tool that is installed. Ensure that you
use the correct machine load capacity chart for
operation on tires or for operation on the stabilizers.
Make sure that you understand the machine load
capacity chart before you attempt to lift a load.
Be alert at all times for changing conditions which may
affect the stability of the machine.
Extending the boom or lowering the boom increases the
outreach of the load. This decreases the capacity and
the stability of the machine. Retract the boom before
you lower the boom.
Be careful when you position a load or when you
engage a load. Be careful when you are using clamps or
when you are using cylinders. Also, be careful when
you are using a device that pierces the load. Ensure
that the operation can be completed without pushing
the load off the stack.
Note: Refer to Operation and Maintenance Manual,
"Operator Controls" for the location and operation of
the machine controls.
1. Make sure that no one is on the machine or near
the machine before you move the machine. Keep
the machine under control at all times.
2. Ensure that the rear lights are in the raised
position for operating the machine under normal
working conditions. Ensure that the rear lights are in
the lowered position for driving the machine on
public roads. Refer to Operation and Maintenance
Manual, "Roading the Machine" for further
information.
3. Start the machine.
4.
Raise all lowered work tools in order to pass over any
obstacles. Fully raise the stabilizers.

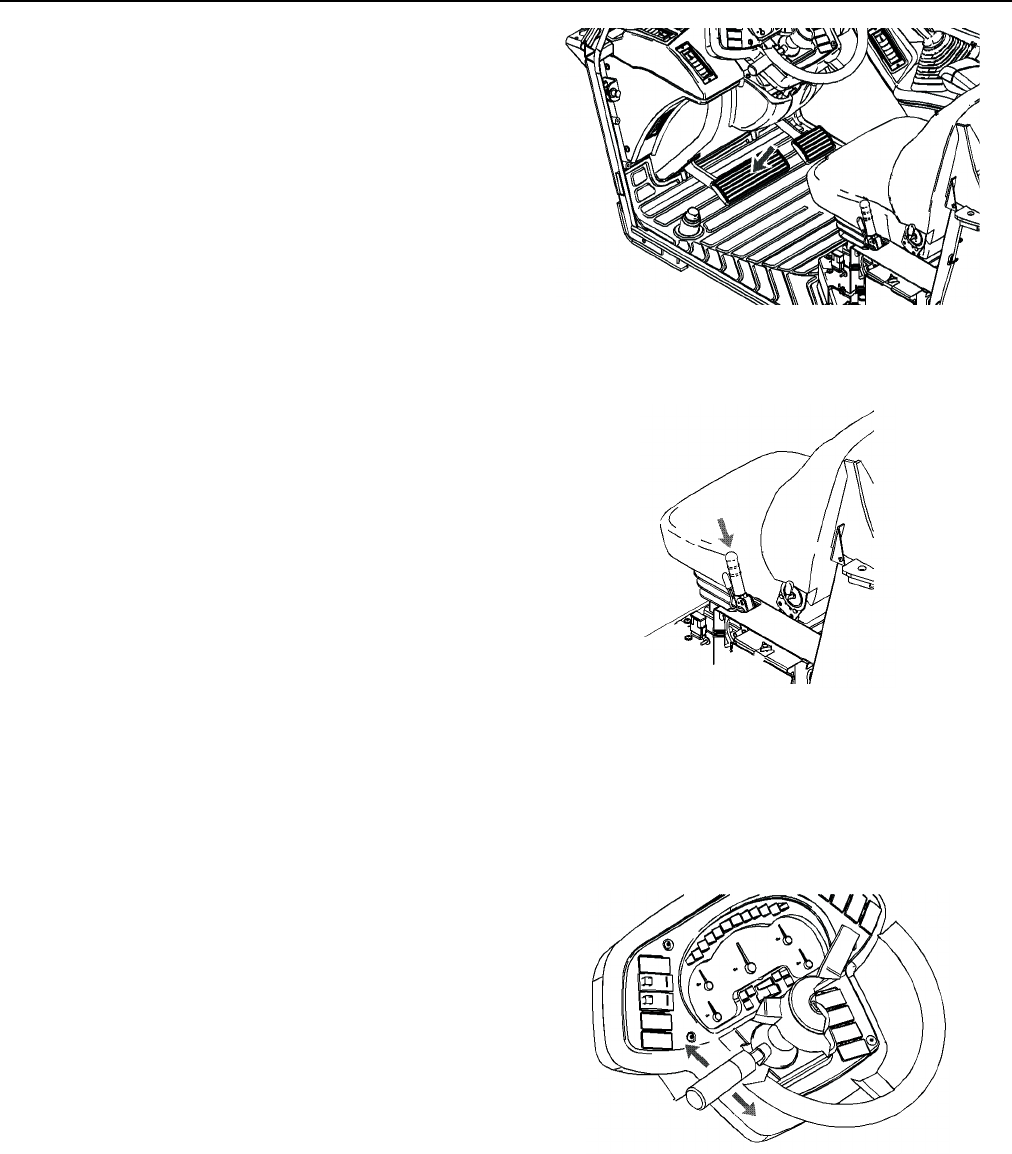

Illustration 90 g01040816
5. Push down on the service brake control in order to
prevent the machine from moving.
Illustration 91 g01040761
6. Disengage the parking brake. The parking brake
has an interlock switch which prevents the
machine from being driven through the brake. The
machine will not move in forward or in reverse
when the parking brake is engaged.
Illustration 92 g01040788
7. Move the transmission control to FORWARD
position (F) or to REVERSE position (R).
8. Rotate the transmission control until the required
transmission speed is selected.
9. In order to move the machine, release the service
brake pedal. Push the accelerator control.
