TH360B Telehandler Operation and Maintenance Manual Page 11

Operation and Maintenance Manual
31200243 9
Safety Section

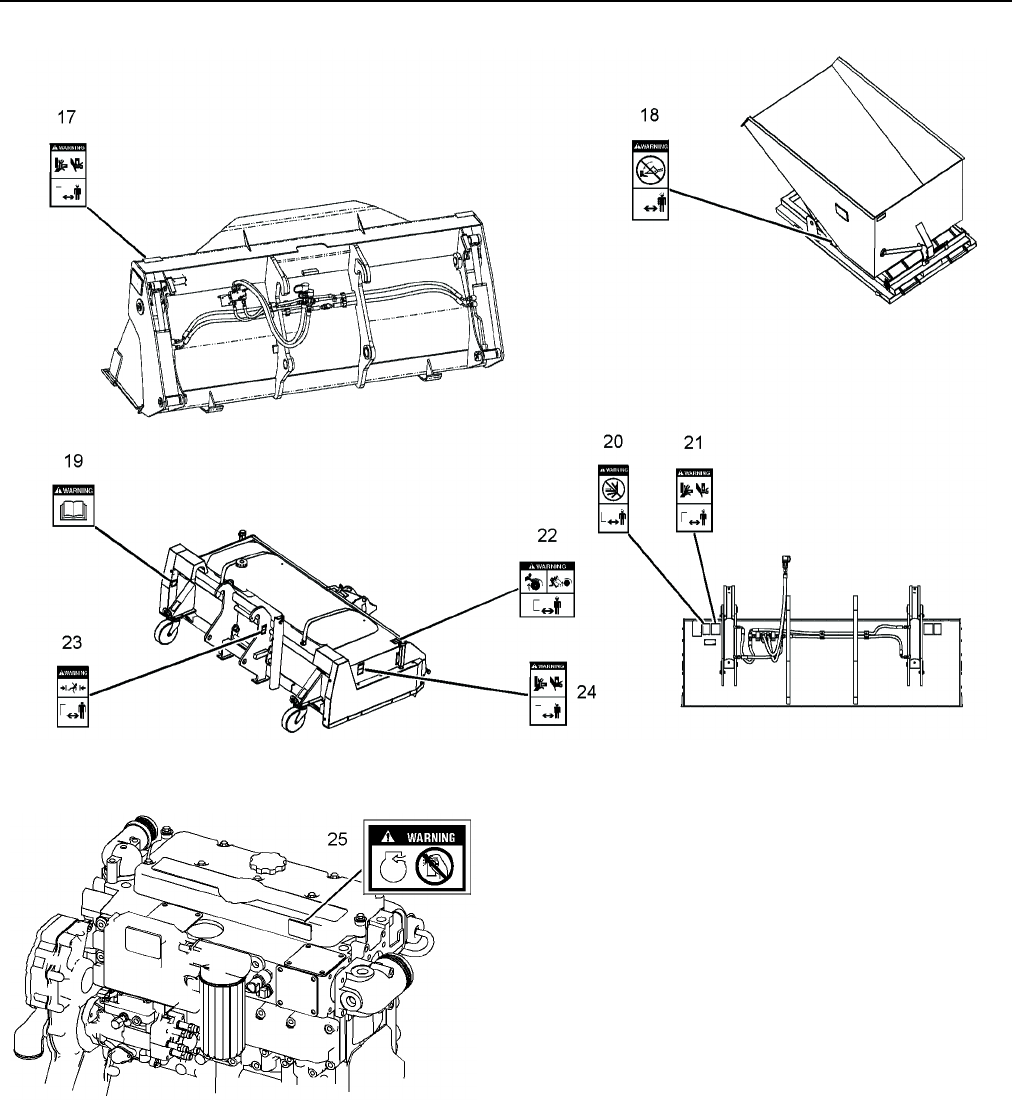

Illustration g01213316
Illustration 5 g01213318
There are several specific safety messages on these
machines. The exact location of the messages and the
description of the messages are reviewed in this
section. Please become familiarized with all safety
messages.
Make sure that all of the safety messages are legible.
Clean the safety messages or replace the safety
messages if you cannot read the words. Replace the
illustrations if the illustrations are not legible. When
you clean the safety messages, use a cloth, water and
soap. Do not use solvent, gasoline, or other harsh
chemicals to clean the safety messages. Solvents,
gasoline, or harsh chemicals could loosen the adhesive
that secures the safety message. Loose adhesive will
allow the safety message to fall.
Replace any safety message that is damaged, or
missing. If a safety message is attached to a part that
is replaced, install a safety message on the
replacement part. Any Caterpillar dealer can provide
new safety messages.
