TH360B Telehandler Operation and Maintenance Manual Page 42

Operation and Maintenance Manual
40 31200243
Product Information Section

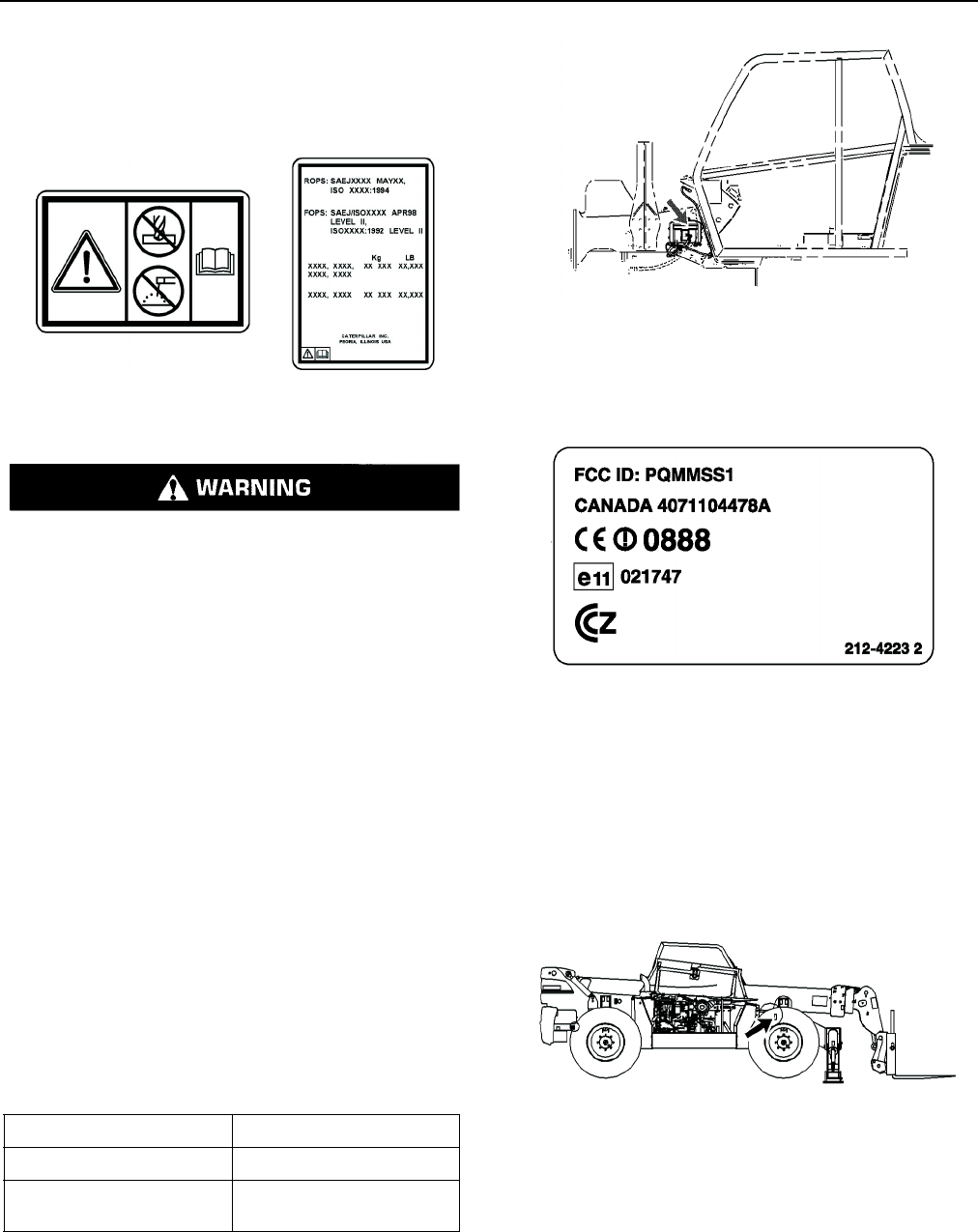

ROPS/FOPS Film
This safety message is positioned behind the seat on
the rear window.
Illustration 43 g01211890
Structural damage, an overturn, modification,
alteration, or improper repair can impair this
structure's protection capability thereby voiding this
certification. Do not weld on or drill holes in the
structure. This will void the certification. Consult a
Caterpillar dealer to determine this structure's
limitations without voiding its certification.
This machine has been certified to the standards that
are listed on the certification film. The maximum mass
of the machine, which includes the operator and the
attachments without a payload, should not exceed the
mass on the certification film.
Refer to Operation and Maintenance Manual, "Guards
(Operator Protection)" for more information.
Machine Security System
If equipped, this message is used to verify the
certification of the Machine Security System (MSS) as a
RF transmitter. The following specifications are
provided to aid in ensuring compliance with all local
regulations:
Table 8
(1) Field strength at 10 meters
(2) The operating time is measured after the keyswitch is first
activated.
Illustration 44 g01015547
This plate is located on the control group for the MSS.
The control group is located in the engine compartment.
Illustration 45 g00995393
Consult your Caterpillar dealer with any questions that
concern the operation of the MSS in a specific country.
Italian Roading Homologation
Illustration 46 g00937590
This plate is located on the right side of the machine
behind the front tire.
Field strength(1) 16.12 dB micro-amp/meter
Operating frequency range 134.2 kHz
Operating time(
0.055 seconds (1/18
second)
