247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 14

Operation and Maintenance Manual
14 SEBU7494-06
Safety Section
Safety Messages

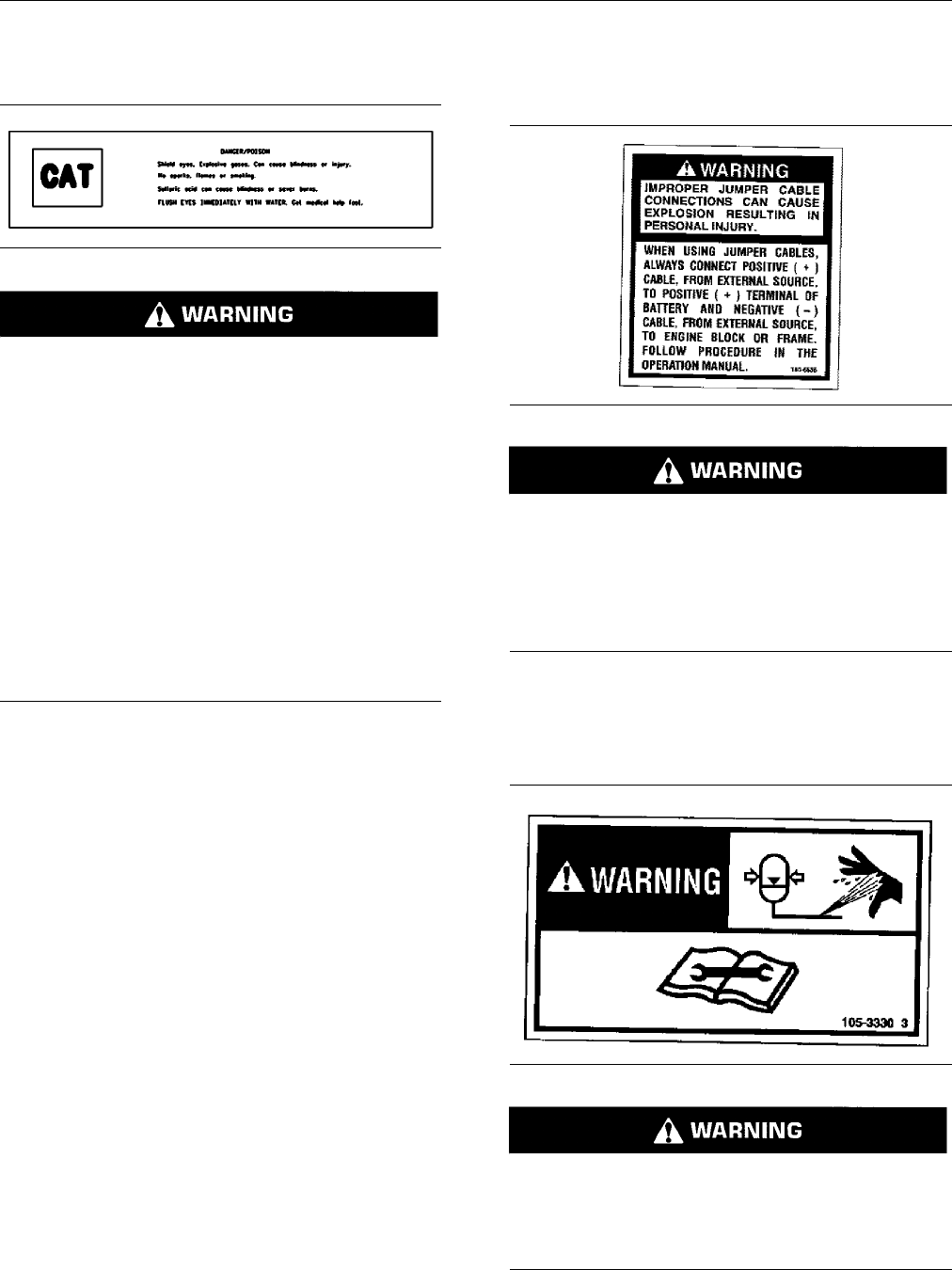

Battery (8)
This warning message is located on the battery.
g00943142
DANGER/POISON
Shield eyes, Explosive gases. Can cause blind-
ness or injury.
No sparks, flames or smoking.
Sulfuric Acid can cause blindness or severe
burns.
FLUSH EYES IMMEDIATELY WITH WATER. Get
medical help fast.
Keep out of re ach of childre n. Contains sulfuric
acid. For medical emergency in USA or Canada
contact: 800-458-5924, other countries contact:
303-893-1322.
Batteries (9)
Thiswarningmessageislocatedontheinsideofthe
engine access door.
g00943143
Improper jumper cable connections can cause ex-
plosion resulting in personal injury. Batteries may
be located in separate compartments, always con-
nect positive (+) cable to posi tive (+) terminal of
battery connected to starter solenoid and negative
(−) cable from external source to engine block or
frame.
Accumulator (10)
This warning message is located near the
accumulator.
g00943144
Accumulator may contain high pressure oil. Do
not service the accumulator or any hydraulic lines
until a
ll of the pressure has been relieved. See the
Service Manual for proper procedures. Failure to
heed this warning could result in injury or death.
