247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 113

Operation and Maintenance Manual
SEBU7494-06 113
Maintenance Section
Engine Air Filter Secondary Element - Replace

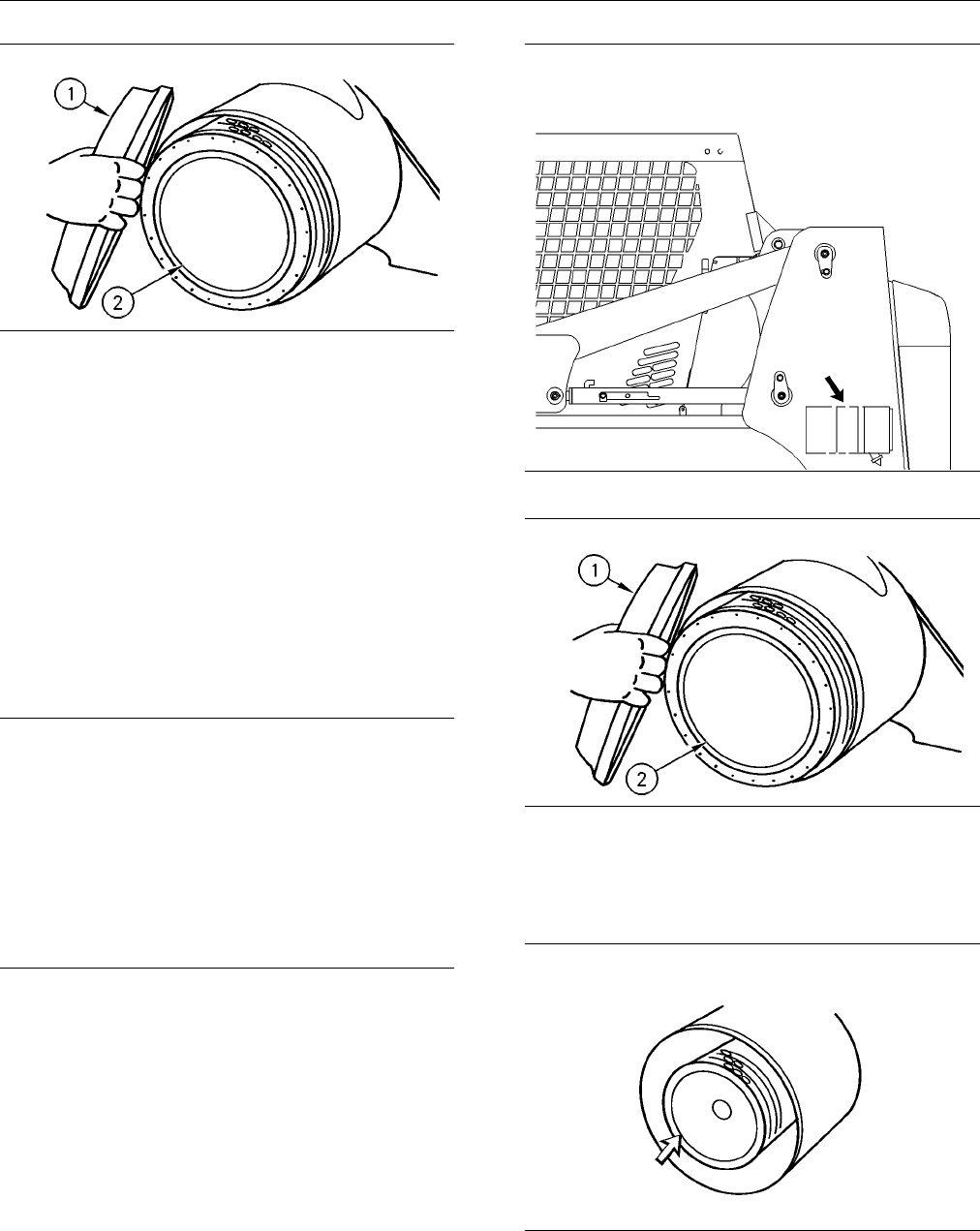

g00101864
Illustration 116
1. Remove the air cleaner housing cover ( 1).
2. Remove the primary filter element (2).
3. Install a clean filter element and install the cover.
4. Reset the engine air filter service indicator.
i01741365
Engine Air Filter Secondary
Element - Replac e
SMCS Code: 1054-510-SE
NOTICE
Always replace the secondary filter element. Never
attempt to r
euse it by cleaning.
The secondary filter element should be replaced at the
time the pr
imary element is serviced for the third time.
The secondary filter element should also be replaced
if the yell
ow piston in the filter element indicator en-
ters the red zone after installation of a clean primary
elemen t, or if the exhaust smoke is still black.
g00891467
Illustration 11 7
g00101864
Illustration 11 8
1. Remove the air cleaner housing cover (1).
2. Remove the primary filter element (2).
g00038606
Illustration 11 9
3. Remove the secondary filter element.
