CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 131

Operation and Maintenance Manual

Page of 331

/ 331

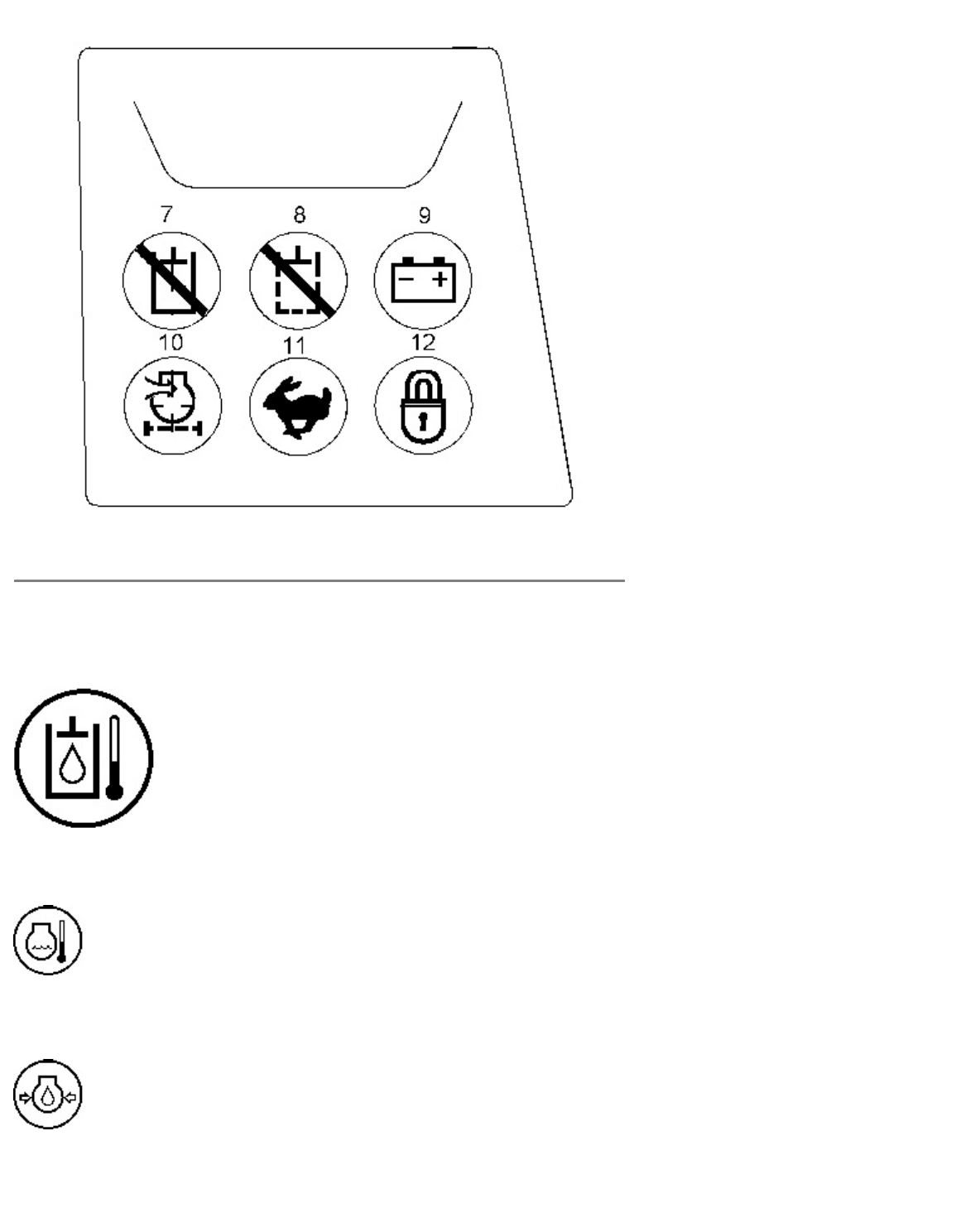

Illustration 2 g01015636

Right Side

Hydraulic Oil Temperature (1) -

This alert indicator will light and an

audible alert will sound when the

temperature of the hydraulic oil is

too high. If this indicator comes on,

stop the machine immediately. Stop

the engine and investigate the

problem.

Engine Coolant (2) - This alert indicator

will light and an audible alert will sound

when the engine coolant temperature is too

high. If this alert indicator comes on, stop

the machine immediately. Stop the engine

and investigate the cause.

Engine Oil Pressure (3) - This alert

indicator will light and an audible alert will

sound when the engine oil pressure is low.

If this alert indicator comes on, stop the

machine immediately. Stop the engine and

investigate the cause.

130
