C32 Power Module Operation and Maintenance Manual Page 15

Operation and Maintenance Manual
SEBU8219-01 15
Safety Section
General Hazard Information
Engine exhaust
contains products of combustion
which may be harmful to your health. Always start the
engine and operate the engine in a well ventilated
area. If the en
gine is in an enclosed area, vent the
engine exhaust to the outside.
Cautiously r
emove the following parts. To help
prevent spraying or splashing of pressurized fluids,
hold a rag over the part that is being removed.
•
Filler caps
•
Grease fittin
gs
•
Pressure taps
•
Breathers
•
Drain plugs
Use caution when cover plates are removed.
Gradually lo
osen, but do not remove the last two
bolts or nuts that are located at opposite ends of
the cover plate or the device. Before removing the
last two bol
ts or nuts, pry the cover loose in order to
relieve any spring pressure or other pressure.

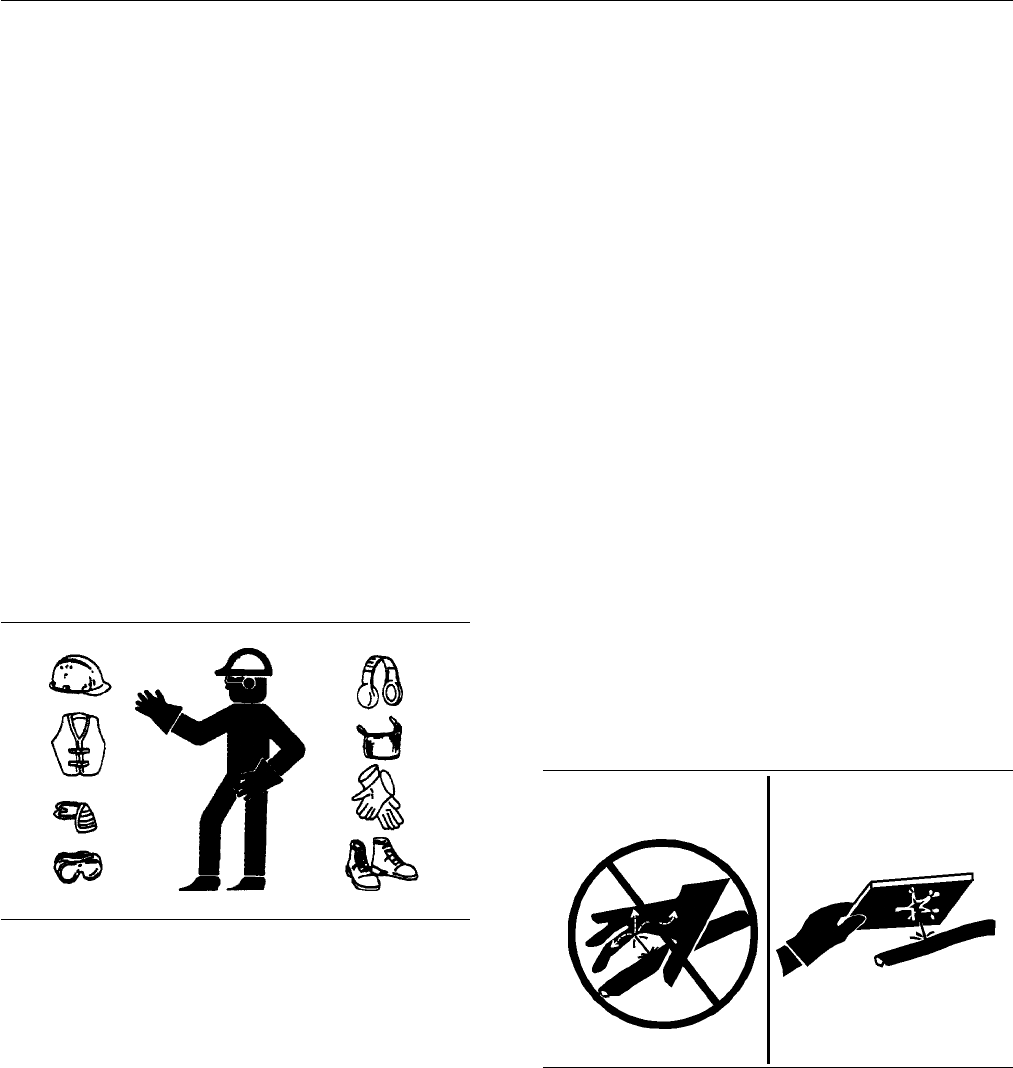

g00702020
Illustration 12
•
Wear a hard hat, protective glasses, and other
protective equipment, as required.
•
When work is performed around an engine that is
operating, wear protective devices for ears in order
to help prevent damage to hearing.
•
Do not wear loose clothing or jewelry that can snag
on controls or on other parts of the engine.
•
Ensure that all protective guards and all covers are
securedinplaceontheengine.
•
Never put maintenance fluids into glass containers.
Glass containers can break.
•
Use all cleaning solutions with care.
•
Report all necessary repairs.
Unless other in
structions are provided, perform
the maintenance under the following conditions:
•
The engine is s
topped. Ensure that the engine
cannot be started.
•
Disconnect th
e batteries when maintenance
is performed or when the electrical system is
serviced. Disconnect the battery ground leads.
Tape the lead
s in order to help prevent sparks.
•
Do not attempt any repairs that are not understood.
Use the prope
r tools. Replace any equipment that
is damaged or repair the equipment.
Pressurized Air and Water
Pressurized
air and/or water can cause debris
and/or hot water to be blown out. This could result in
personal injury.
When pressurized air and/or pressurized water is
used for cleaning, wear protective clothing, protective
shoes, and e
ye protection. Eye protection includes
goggles or a protective face shield.
The maximum
air pressure for cleaning purposes
must be below 205 kPa (30 psi) when the air nozzle
is deadheaded. The maximum water pressure for
cleaning p
urposes must be below 275 kPa (40 psi).
Fluid Pene
tration
g00687600
Illustration 13
Always use a board or cardboard when you check
for a leak. Leaking fluid that is under pressure can
penetrate body tissue. Fluid penetration can cause
serious injury and possible death. A pin hole leak can
cause severe injury. If fluid is injected into your skin,
you must get treatment immediately. Seek treatment
from a doctor that is familiar with this type of injury.
